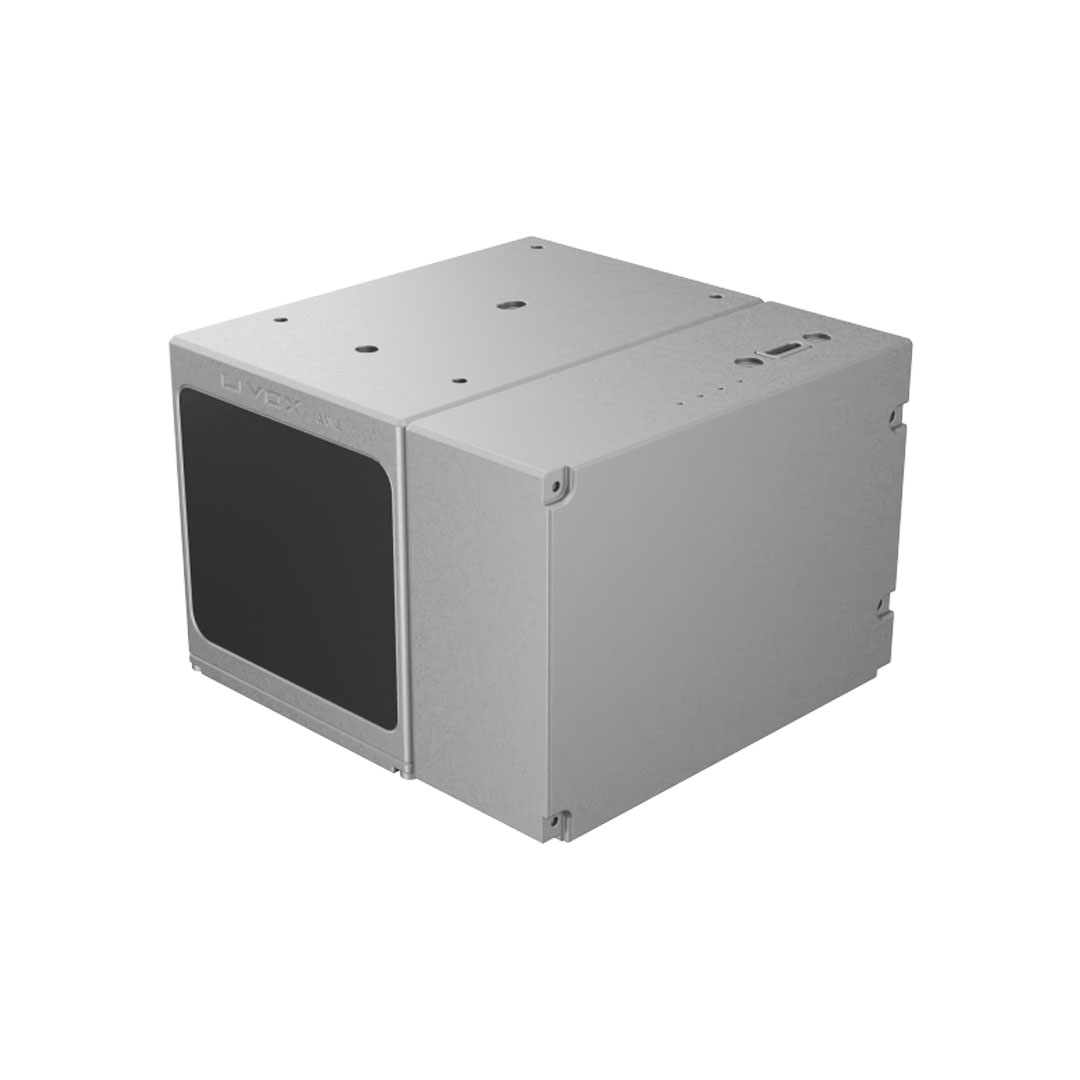

Topodrone LiDAR AVIA

The most affordable LiDAR on the market with modern solid-state laser sensor Livox Avia. High-precision IMU integrated with GNSS receiver TOPODRONE PPK. The speed of dense point cloud generation is 10 times higher than in photogrammetry. The laser scanning is performed automatically. Allows you to get terrain under trees and tall grass.

Deskripsi

The most affordable LiDAR on the market with modern solid-state laser sensor Livox Avia. High-precision IMU integrated with GNSS receiver TOPODRONE PPK. The speed of dense point cloud generation is 10 times higher than in photogrammetry. The laser scanning is performed automatically. Allows you to get terrain under trees and tall grass. Installation on any drone, including:
DJI Matrice 300 RTK
DJI Matrice 200 / 200 V2
DJI Matrice 210 / 210 V2 / 210 RTK

Performing aerial laser scanning without GCPs. Works in PPK mode without the need to access the Internet. Getting fixed solutions at a distance of up to 25 km from base stations. Writing data to a microSD. Automatic conversion to local coordinate systems
The possibility of purchasing an Upgrade Kit for assembling a LiDAR from an already purchased laser sensor

Specifications

General specifications
Manufacturer TOPODRONE
Country of origin Switzerland
Warranty 12 month
Weight 0.8 kg
Operating temperature range -20°C … +65°C

GNSS
Receiver type L1/L2
Number of channels 184
Frequency of GNSS data recording 10 Hz
Accuracy of point coordinates determination 3-5 cm
GPS support L1C/A, L2C
GLONASS support L1OF, L2OF
BeiDou support B1I, B2I
Galileo support E1B/C, E5b
SBAS support L1C/A
QZSS support L1C/A, L1S, L2C
Working without reference points Yes
Ability to operate in PPK mode Yes
Recording GNSS data to a microSD card Yes

LiDAR
Laser sensor type Livox Avia
Accuracy of point coordinates determination 3-5 cm at 70 m
Maximum operating range of the laser scanner 150 m
Working range of the laser scanner 50-70 m
Horizontal FOV 70.4°
Vertical FOV 77.2°
Scanning frequency (single reflection) 240000
Scanning frequency (double reflection) 480000
Scanning frequency (triple reflection) 720000
Laser wavelength 905 nm
Laser class 1
Protection level IP67
Recording data to a microSD card Yes
Connecting the camera Yes
Integrated Inertial Navigation Unit (IMU) Yes
Frequency of IMU operation 200 Hz
Heading accuracy (°, 1σ) 0,08
Pitch accuracy (°, 1σ) 0,03
Roll accuracy (°, 1σ) 0,03
Built-in GNSS receiver Yes

In the box
1 * TOPODRONE AVIA LiDAR
1 * Removable GNSS L1/L2 antenna
1 * Mounting for GNSS antenna
1 * Cables
1 * MicroSD 16Gb
1 * TOPOLiDAR Point Cloud software
1 * User manuals and video tutorials
