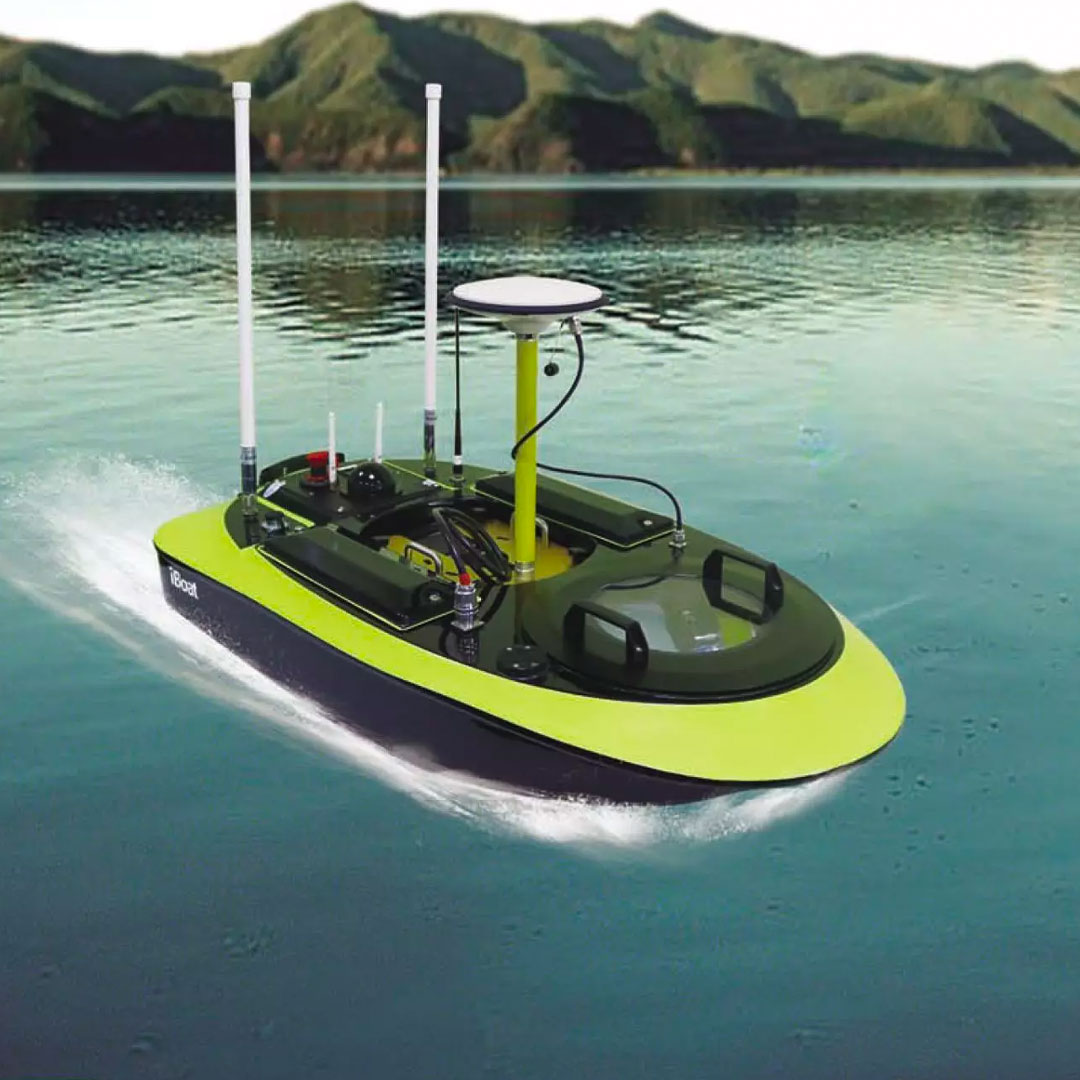

Hi-target iBoat Underwater Topographic Survey USV Platform

The Hi-Target iBoat series USV with robust hull design and protective ducted propellers provides an entirely new option for high-resolution shallow-water hydrographic survey.Installed with multiple sensors,iBoat series USV could be controlled remotely to execute planned tasks with the help of satellites positioning.

Deskripsi

The Hi-Target iBoat series USV with robust hull design and protective ducted propellers provides an entirely new option for high-resolution shallow-water hydrographic survey.Installed with multiple sensors,iBoat series USV could be controlled remotely to execute planned tasks with the help of satellites positioning.

Main features of the iBoat BS1 Unmanned Surface Vehicle:
1.Portable Double-M design with ducted propellers
2.Manual or autopilot ,switchover at any time
3.Professional sounding module range up to 300m
4.Auto-return while low battery or dropped signal

Advantages of the iBoat BS1 Unmanned Surface Vehicle:
Hull module
Portable Double-M design with ultra shallow draft
Kevlar&carbon high-strength composite
Propellers with ducted design and protective shield
High endurance with extendable battery

Sounding module
Professional HD-MAX sounding module range from 0.15~300m
Digital and simulative echo signals combined
Independent HiMAX software available for collecting,guiding and post-processing

Applications of the iBoat BS1 Unmanned Surface Vehicle:
Underwater topographic survey
Underwater landscape survey
Hydrographic survey
Water quality monitoring

Specifications

Hull Parameter
Dimensi: 1047mm x 555mm x 190mm
Berat dasar perahu: 14 KG
Bahan Hull: Kevlar & biber karbon kekuatan tinggi komposit
Perahu bentuk: Ganda-M merampingkan desain, barycenter rendah, resistensi kecil
Anti-gelombang & angin: 3th win tingkat dan 2rd gelombang tingkat

Power dan Parameter Listrik
Daya tahan baterai: 4 jam pada 2 m/s
Top speed: 4.5 m/s
Propulsion: Brushless DC outdrivers
Propeller jenis: Dua baling-baling menyalurkan
Kontrol arah: Membelok tanpa mesin kemudi dan berlayar terbalik

Safety Guarantee
Auto-return: Auto-kembali sementara sinyal baterai rendah atau turun

Ashore Base
Sistem operasi: Mendukung Windows dan Android (Laptop atau pad tersedia tergantung pada kebutuhan)
Communicating mode: RF titik ke titik secara real time
Transmisi jarak: jembatan Nirkabel 2Km (5Km, 10Km, 15Km opsional)
Navigasi mode: Manual atau autopilot, peralihan setiap saat

Sounding Performance
Work frequency: 200 KHz
Beam angle: 5°±0. 5 °
Sounding range: 0.15 ~ 300 m
Sounding resolution: 1cm±0. 1 h (h = kedalaman), 1 cm kedalaman resolusi

Location Accuracy
RTK: Horisontal: ± 8mm + 1ppm RMS; Vertikal: ± 15mm + 1 ppmRMS
Beacon (opsional): 0.5 m (1 & delta;)
SBAS: 1.0 m CEP

System Software
Hull control system: Autopilot, hull parameter kontrol, konversi koordinat dll
HiMAX terdengar software: Mendukung konfigurasi parameter, konversi koordinat, kedalaman lokasi mengumpulkan, post-processing (simulatif gabungan untuk mudah salah menilai kedalaman kedalaman kedalaman dan digital), fitur titik sampling secara acak, RTK dan pasang dokumen untuk pasang mengukur, beberapa format data untuk hasil output dll

Intelligent Controller
Communication mode: RF titik ke titik secara real time
Reacting distance: 2Km
Waterproof grade: IP65
Function: modus Kerja beralih secara real-time, menampilkan informasi dasar dari USV secara real-time, kontrol kecepatan dan arah dari USV
