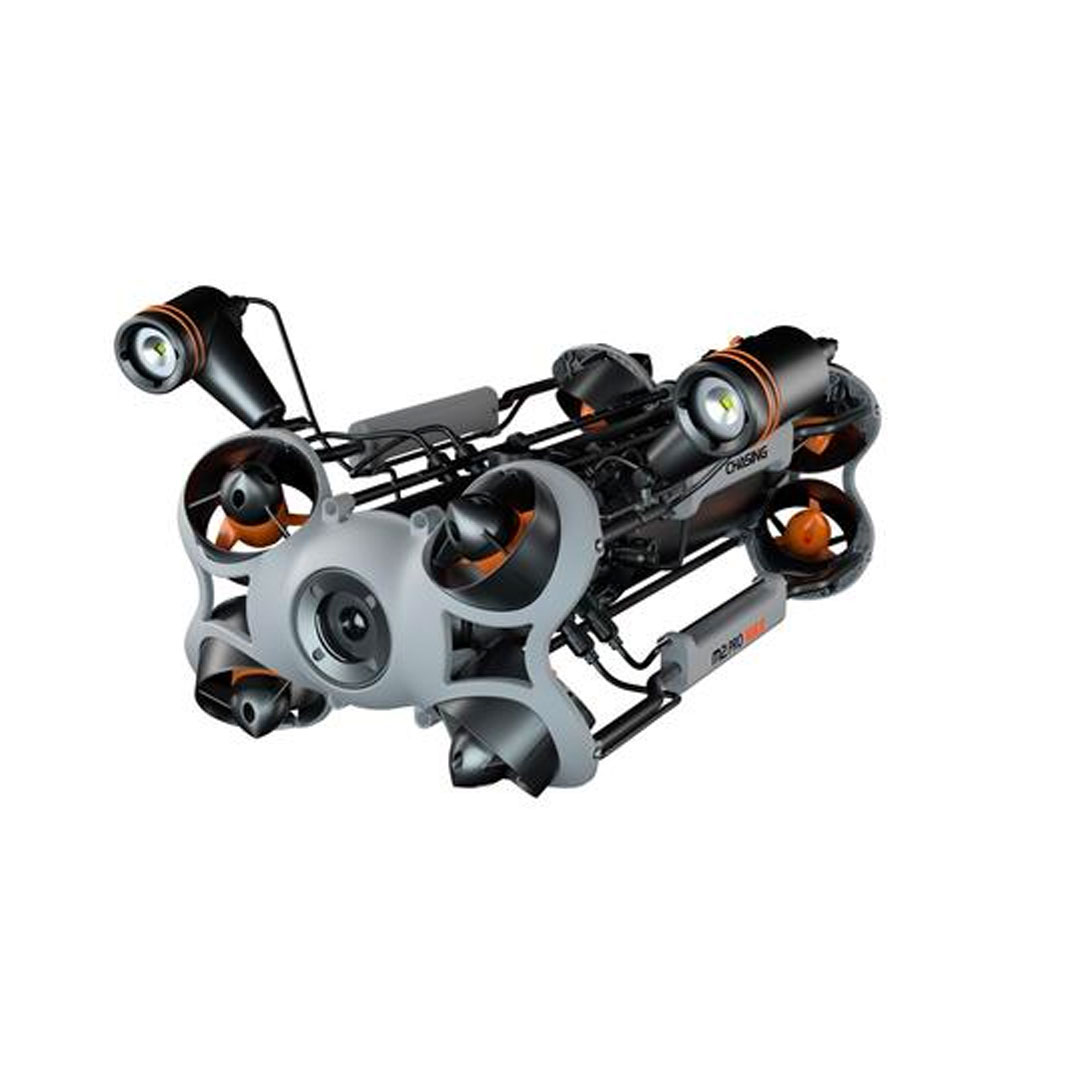

Chasing M2 Pro Max ROV Industrial-Grade Underwater

CHASING M2 PRO MAX is an industrial-grade ROV, which is designed for government and enterprise users and adopts a new generation accessory mounting mode, a new generation accessory quick assembly and disassembly technology, a new generation shorebase power supply system and a new generation floodlight design, so as to provide industrial customers with more user-friendly, more professional and more reliable underwater ROV solutions.

Deskripsi

CHASING M2 PRO MAX is an industrial-grade ROV, which is designed for government and enterprise users and adopts a new generation accessory mounting mode, a new generation accessory quick assembly and disassembly technology, a new generation shorebase power supply system and a new generation floodlight design, so as to provide industrial customers with more user-friendly, more professional and more reliable underwater ROV solutions.

Specifications

ROV
Size 608 x 294 x 196 mm (Excluding the floodlight)
Weight ≈8 KG
Maximum Depth 200m
Pull (forward / drift upwards / traverse) 5.7 / 4.0 / 3.6 KG
Maximum Battery Life >4h
Battery 302.4Wh
Operating Temperature -10°C ~ 45°C

E-Reel
Size 296x189x279 mm
Weight 3.5 KG
Max Storage Length 200 meters
Battery Capacity 4800 mAh
Number of Cycles >300 times
Runtime 30 times
Wiping Speed 3 gears
Take-Up Speed (200m) Fast speed 220 s Low speed 9 min
Operating Temperature -10℃~45℃
Charging Time 2 H (12 V ) / 4 H (25.2 V)

Remote Controller
Size 160 x 155 x 125 mm
Weight 685 g
Battery Capacity 2500 mAh
Battery Life ≥6H (Depend on working condition)
Wi-Fi Support
HDMI support
USB support
Phone / Tablet Clip Maximum support 10 inches

LED Lights
Brightness 2 x 4000 lm
Color Temperature 5000 K ~ 5500 K
CRI 85
Dimming Three adjustable

Sensor
IMU Three-axis gyroscope acceleration compass
Depth Sensor <±0.25 m
Temperature Sensor <±2 °C

Adapter
Adapter 8 A / 25.2 V
ROV Charging Time 2.5 H
Remote Controller Charging Time 2 H

Camera
CMOS 1/2.3’’
Aperture f/1.8
Focal Length 0.3m~∞
ISO Range 100-6400
Field of View 150°
Maximum Image Resolution 12 M
Image File Types JPEG / DNG
Normal Video UHD: 3840 x 2160 (4K) 30 fps FHD: 1920 x 1080 (1080p) 30 / 60 / 120 fps
Slow Motion Video 720p: 8x (240fps) 1080p: 4x (120fps)
Time-Lapse Video 4K / 1080p
Video Maximum Stream 60 M
Video Type MP4
Micro SD Card Memory 128 G
